Applications

Application Industry: Model Field(Construction Model,Aviation navigation model, wooden toys), advertising filed,decorative and decorating, craft gift industry, electronic, garments and leather industry, art glass industry, art glass industry,computerized embroidery and clipping, packaging and paper industry.

Main Cutting Materials: Acrylic, density board(MDF), double-color board, paper, plastic, rubber, cloth, wool, crystal, bamboo products, wooden products, etc

Materials Can work With: Organic glass, acrylic board (the paulownia,  lightwood), bamboo products, Double-color board, paper, leather, ceramics, textiles, crystal, jade, coconut shells, horn, resin animal sebum, ABS plate, lamp shade and other non-metallic materials.

Features

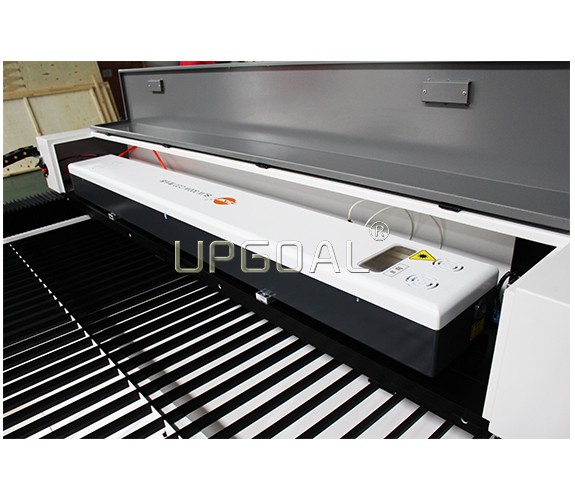

Laser Head with infrared positioning

Newly design, More in according with mechanical engineering. Safe and Durable. Simple Operation with high engraving/cutting speed and high laser power convert ratio.

Laser Tube

Adopted famous With famous SLW  300W/500W folding Co2 laser tube, can for thickness 30-40mm acrylic wood cutting, long life time and stable using.

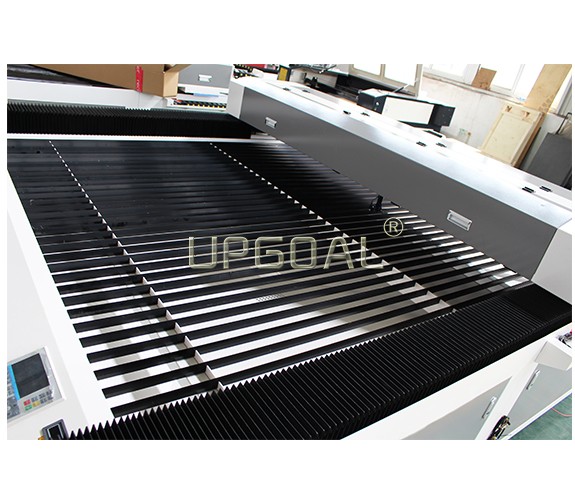

Working Table

Knife Strips: With oxidation treatment and low reflection ratio Ensured cutting quality

Beam Path System

Adopting imported focus lens with high luminousness and mirror with high relativity ensure stable power transference.

Motion System

Imported High precision, low friction force and stand wear and CSK Taiwan linear guide rails and blocks with 3M belt ensured stable transmission, lower noise

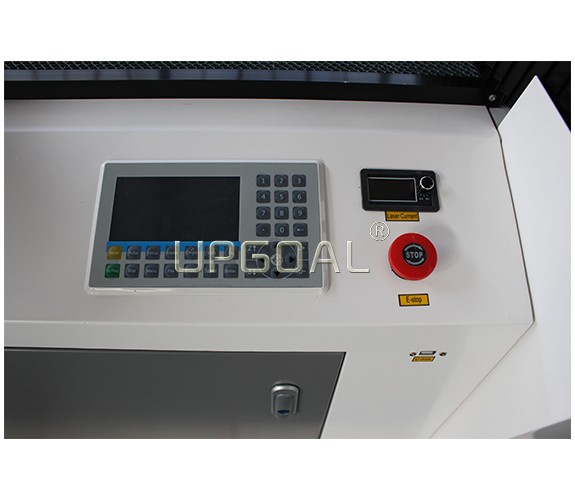

Operation System

Advanced USB port RuiDa RDC6445G(EC) DSP control system with large inner memory device and Fast curve cutting and Optimized shortest path function, Greatly improved the working efficiency .

With full-process automatic laser power attenuation compensation , ensuring the performance consistency of engraving/cutting. The High speed motion control program with pre-buffering function enhances productivity more.

Completely compatible with various CAD&CAM softwares such as AuotCAD, CorelDAW, supporting the designs directly exporting. With advanced Color management and defining the working turns with different colors , All or a part work can done in one time.

Rationalized placement of the electronic parts. Optimized heat dissipation effect.

Cooling System

Industrial chiller CW-6000(Teyu, S&A), ensuring the laser tube long time continus working.
